Glass catch U-profile
Article number SG-UP-10-2R-250-7016
€ 100,00set of 2, incl. VAT
In stockLead time 3 working days
Count the number of channels in your sliding wall's track.
Both lengths cost the same. Cutting shorter to size is always possible.

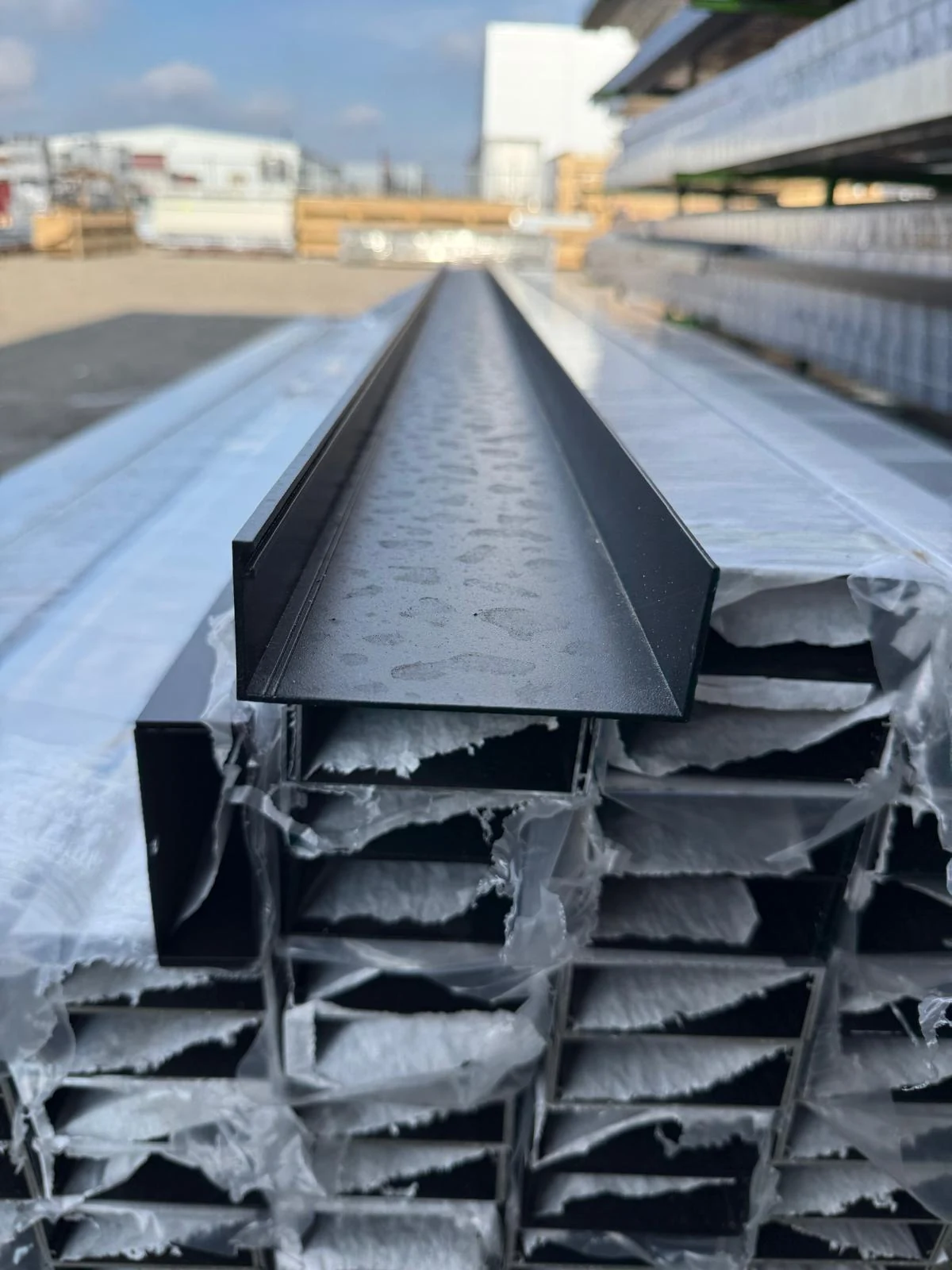

All colours powder-coated. The photo shows anthracite (RAL 7016).
Rather order via WhatsApp? Order via WhatsApp
Unsure about the colour? Send a photo of your profile and we will tell you which one matches. Ask us
About this part
The U-profile catches the glass panels where the sliding wall meets a post, wall or fence. Without one a gap is left there: the U-profile closes it, keeps wind and insects out and finishes the side neatly. They are supplied in sets of two, because a sliding wall closes on two sides. Pick the profile that matches your track system: a 4-track wall needs a wider profile than a 2-track.
Which profile fits my sliding wall?
The profile has to take every panel side by side, so its width follows the number of tracks. Count the channels in your existing track and pick the matching row.
| Track system | Inner width | Outer width | Depth |
|---|---|---|---|
| 2-track(your choice) | 45 mm | 47 mm | 30 mm |
| 3-track | 67 mm | 69 mm | 30 mm |
| 4-track | 89 mm | 91 mm | 30 mm |
| 5-track | 111 mm | 113 mm | 30 mm |
| 6-track | 131 mm | 133 mm | 30 mm |
Not sure? Send a photo of the end of your track on WhatsApp and we will count with you.
Specifications
- Material
- Anodised aluminium
- Finish
- Powder-coated
- Glass thickness
- 10 mm
- Contents
- 2 profiles
- Mounting
- Against a post, wall or fence, on both sides
- Track system
- 2-track
- Inner width
- 45 mm
- Outer width
- 47 mm
- Depth
- 30 mm
- Length
- 250 cm
- Colour
- Anthracite (RAL 7016)
Delivered within 3 working days
