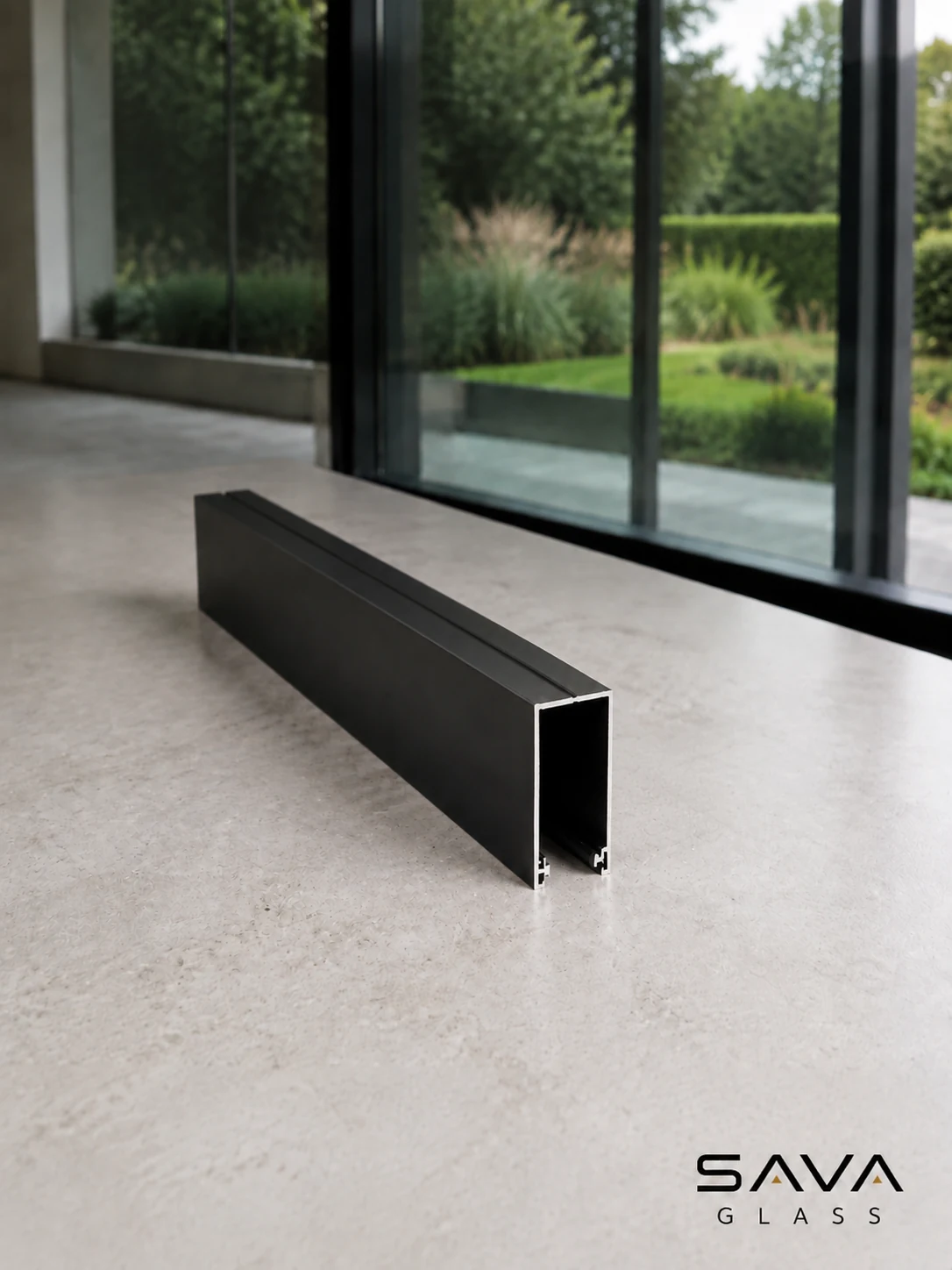

Top track
Article number SG-BR-75-1R-7016
€ 45,00each, incl. VAT
In stockLead time 3 working days
Measure the width of your opening first. The table below says which rail goes with it.
All colours powder-coated. The photos show anthracite (RAL 7016).
Rather order via WhatsApp? Order via WhatsApp
Unsure about the colour? Send a photo of your profile and we will tell you which one matches. Ask us
About this part
The top track keeps the glass panels upright above the bottom track and lets them slide smoothly. It does not carry their weight — the bottom track does that. The number of channels sets how many panels can run side by side, and so how wide the opening may be. Each channel covers about a metre, so measure your opening first and pick the rail count from that.
Which top track do I need?
Each channel runs one panel, and a panel is about a metre wide. Measure the width of the opening and take the first row that clears it.
| Number of tracks | For openings up to |
|---|---|
| 1-track(your choice) | 103 cm |

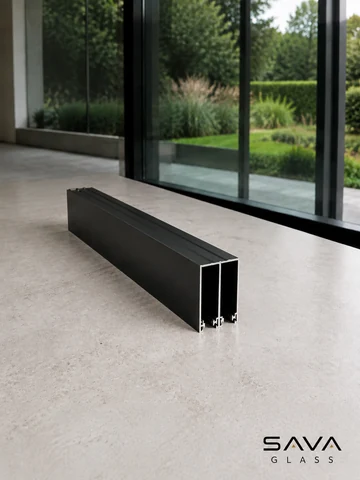

| 2-track | 203 cm |

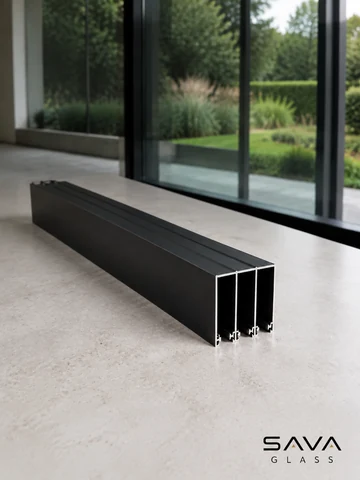

| 3-track | 303 cm |

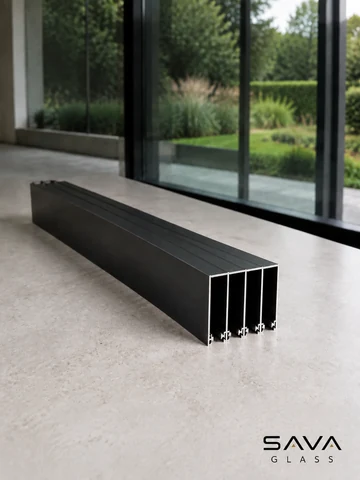

| 4-track | 403 cm |

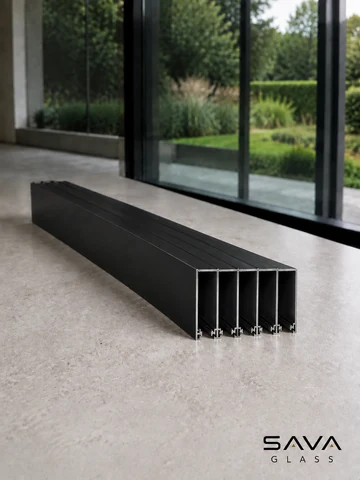

| 5-track | 503 cm |

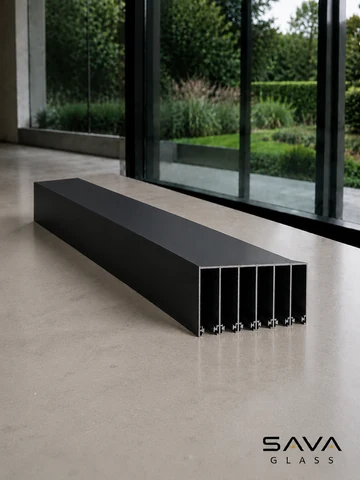

| 6-track | 603 cm |
Falling exactly between two? Take the larger rail. Shortening one is possible, lengthening is not.
Specifications
- Material
- Anodised aluminium
- Finish
- Powder-coated
- Height
- 75 mm
- Thickness
- 25 mm
- Glass thickness
- 10 mm
- Carries weight
- No, the bottom track does
- Number of tracks
- 1-track
- For openings up to
- 103 cm
- Colour
- Anthracite (RAL 7016)
Delivered within 3 working days
